PVCu Sliding Patio Doors

Our PVCu patio doors are among our most elegant doors; the unique sliding design will naturally enhance your home by bringing in more sunlight. Sliding glass doors are a simple but still very attractive solution for large openings. Rest assured that whether you live in a traditional or contemporary home there’s a sliding patio door to suit.


The clean minimalistic lines of our PVCu sliding patio doors offer both value and versatility. The flexibility of PVCu enables us to offer a versatile choice of styles and colours, which in turn forms what is considered a star in the commodity door market.

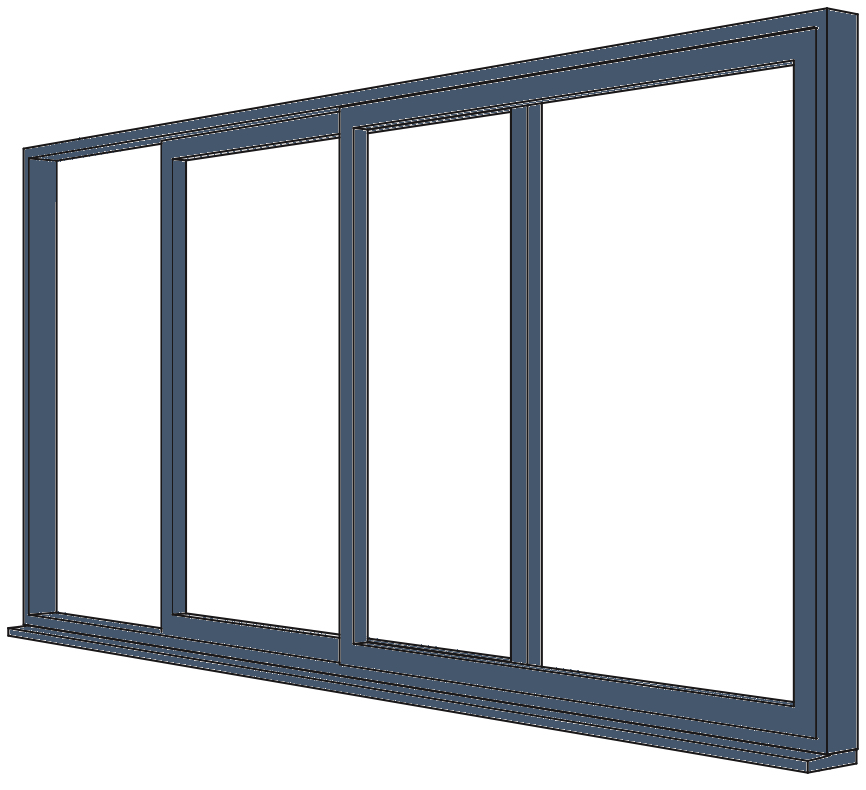

Our PVCu sliding door design is based upon innovation, performance and style. The sliding doors are available in 4 different door configurations ranging from 2 to 4 panels. Each panel is available in a total span of 3 meters enabling you to create a design that truly brings the outside in.

  • Colours
  • Features
  • Hardware
  • Glass
  • Integral Blinds
  • Security
  • Shapes & Styles

Smooth White

white grain

White Grain

Ice cream

Ice Cream

Cream Woodgrain

Cream Grain

Golden Oak S30.30.11.0031

Golden Oak

Irish Oak S30.30.11.0109

Irish Oak

Chartwell Green S30.30.10.0224


Anthracite Grey S30.30.10.0054

Grey Grain

Black Ash S30.30.10.0078

Black Grain

Agate Grey S30.30.70.0038

Agate Grey

English Oak S30.30.11.0044

English Oak

Nut Tree S30.30.11.0033

Nut Tree

Rosewood S30.30.11.0059



Bespoke RAL


Standard Handle

Our standard handle has been designed to make it as easy as possible to open and shut a sliding door. The final design of the PVCu sliding patio door isn’t complete until you’ve picked the finish of your handle.

Available in 7 colours matching our window ranges; white, black, chrome, gold, graphite, bronze and antique black.

Glass Options

standard glass window

The standard glass unit used in our PVCu sliding patio doors is 28mm in depth and is comprised of 4mm clear glass to the outside, a warm edge spacer bar and 4mm clear Low E glass on the inside.

The inclusion of argon gas in to the cavity of a double-glazed unit reduces the heat conductance between the panes. This happens because the gas is 6 times denser that air.

Pilkington Optiphon is an acoustic laminated glass that offers excellent noise reduction without compromising on light transmittance or impact performance. Two 3mm pieces of glass are put together with a noise reducing interlayer typically 0.8mm thick. This glass offers the dual benefit of noise reduction and security.

Warm edge spacer bars insulate the edges of a sealed glass unit and separate the panes of glass. Traditionally, spacer bars were made of aluminium, however the warm edge spacer bar used in our glass units is an extruded PVC material specifically designed to reduce transference of heat between the panes of glass keeping more heat inside the property. The spacer bar is available in 3 different colours; grey, black and white.

Warm Edge Spacer Bars

Obscure Glass

Pilkington’s obscure glass range provides obscuration and decoration.  All patterns are classified according to their level of obscurity in relation to each other, with 1 being least obscure and 5 being most obscure.

Level 5

Level 2

Charcoal Sticks
Level 4

Level 4

Level 3

Level 4

Level 3

Level 5

Level 4

Level 4

Level 4

Level 5

Level 1

Level 4

Satin Glass
Level 5

Our Venetian integral blinds come in a variety of 10 different colours to complement your chosen frame finish. Integral blinds are available on our complete product range excluding bespoke shapes. An extended lead time applies on blinds in 24mm glass units used for our PVCu sliding sash windows and aluminium flush casement windows. Please note that the operational device will always be positioned on the right-hand side (viewed internally).

Option 1: Cordless Slider

Option 2: Cord Mechanism

High Security ATK Diamond Grade Cylinder

ATK is our standard cylinder fitted on the master door. The lock comes with the Master Locksmith Association’s highest rating – SS312 Sold Secure Diamond, TS007 3-star rating and British Kitemark accreditations. The ATK euro cylinder has 6 trap pins for advance pick resistance and 10 anti-drill pins that make your patio doors stunningly secure.

ATK Chrome1

PAS 24 Security Upgrade

Upgrade the security of your PVCu Patio Doors by taking advantage of our PAS 24:2016 security package. The system we use for our sliding doors is the only PVCu sliding door system with PAS 24 accreditation for 2, 3 and 4 panel options. The PAS 24 upgrade includes:

  • 12-point locking device
  • Anti lift devices


Weather Performance

The PVCu sliding patio doors are built with weather performance at its core. The PVCu profile act as strong and durable insulators against external elements. To protect your home from anything but natural light, the doors have been weather-tested towards both air and water tightness.

Energy Rating

Our PVCu sliding glass doors offer outstanding energy ratings. The doors come with an irresistible energy rating of up to ‘A+’. Such energy rating enables us to offer a product that’s not just visually stunning but also strong and durable.


With all our PVCu sliding patio doors, there is a 10-year manufacturing guarantee as standard. We strive to ensure that our quality is assured but having a 10-year guarantee offers peace of mind for years to come. Download our guarantee PDF or speak to one of our product experts to find out more.


Our contemporary PVCu sliding patio doors come with a future-proof PAS 24 security upgrade package for added peace of mind. As standard, all our patio doors come with a multi-point locking system to help keep unwanted guests where they belong, outside!

Technical Information

Key Measurements

Frame Depth: 70mm
Glazing: 28mm or 36mm


Min Height: 1800mm
Max Height: 2350mm
2 Pane Min Width: 1505mm
2 Pane Max Width: 3005mm
3 Pane Min Width: 2000mm
3 Pane Max Width: 4500mm
4 Pane Min Width: 2600mm
4 Pane Max Width: 5930mm
